JACK CYLINDERS

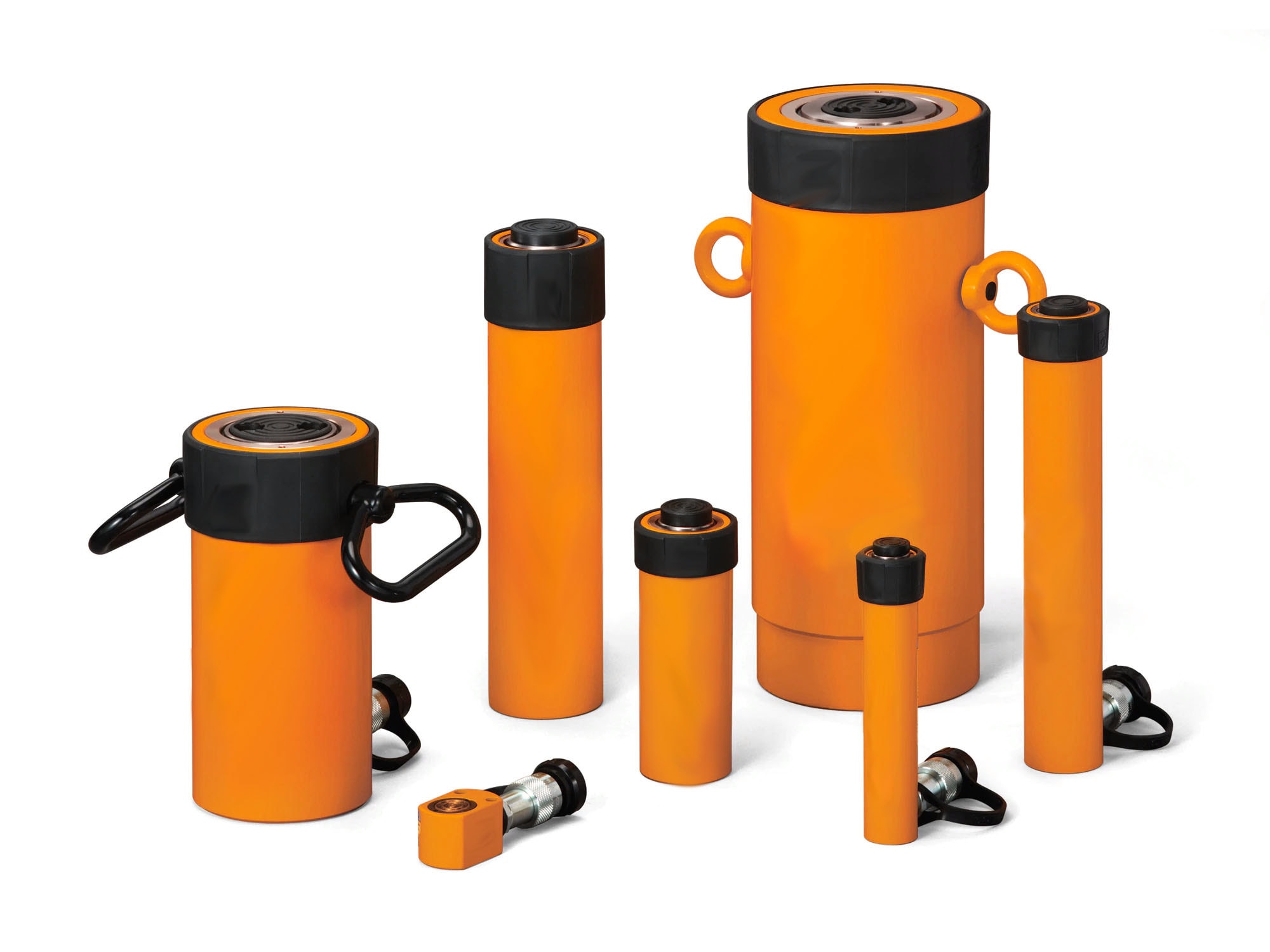

Range of Jacking Cylinders

Callcott & Downey are able to manufacture a large range of jacking cylinders built to your specifications. Our aim is to manufacture cylinders to such a high standard, that they actually save you money by returning a significantly extended service life. We achieve this by re-engineering design flaws and by utilising the most suitable and durable materials for the job at hand.

Single-Acting Aluminium Cylinder

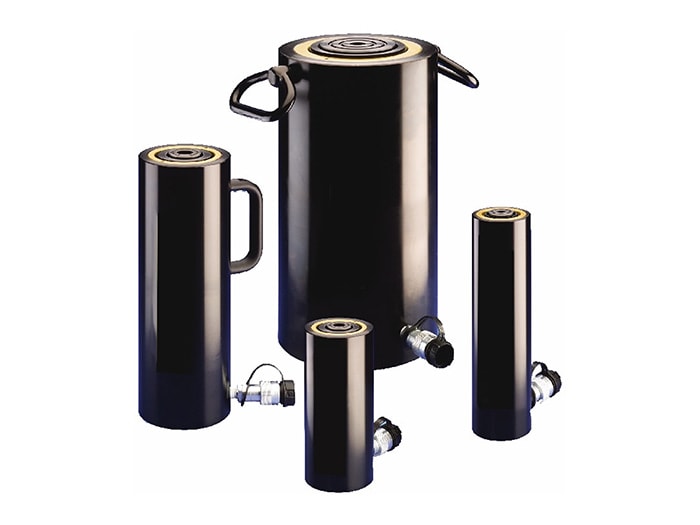

Single Acting Aluminium Cylinders
  • Max Working Pressure: 700 Bar;
  • Light weight;
  • Single acting cylinders with heavy duty return springs and are designed to be used in all orientations;
  • 50 ton and larger cylinders have been surface treated for rigidity and have carry handles;
  • The stop-ring avoids cylinder piston rod over-reaching,
    accommodating maximum cylinder extension.
Part.NoCapacity
(ton)
Stroke B
(mm)
Oil Capacity
(cm3)
Collaps.

Height A(mm)
D
(mm)
Saddle Protr.
From Plgr.K(mm)
Weight
(kg)
RAC-20220501561748533.6
RAC-204201003122248534.1
RAC-206201504682748534.6
RAC-302305022118110034.5
RAC-3043010044223110035.2
RAC-3063015066328110035.9
RAC-502505035418613038.5
RAC-5045010070923613039.5
RAC-506501501063286130311.1
RAC-10041001001431271180319.6
RAC-10061001502147321180321.9
RAC-10081002002863371180324.2
RAC-15061501503405343230333.3

Double-Acting Aluminium Cylinder

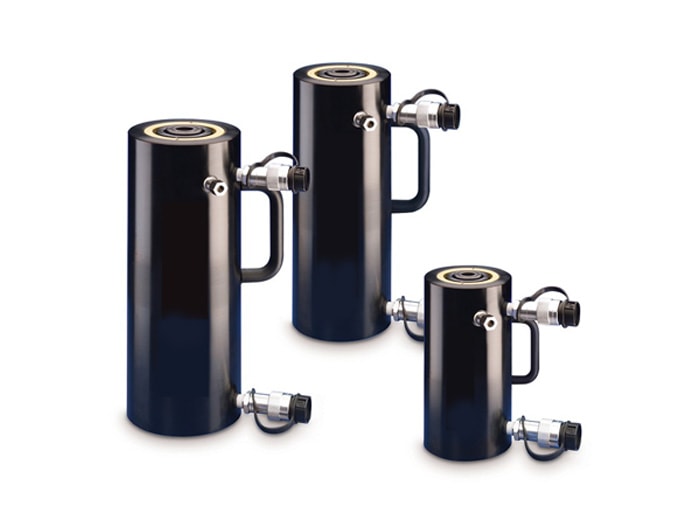

Double Acting Aluminium Cylinders
  • Light weight;
  • These double acting cylinders enable quick retraction and are designed to be used in all orientations;
  • 50 ton and larger cylinders have been surface treated for rigidity and have carry handles;
  • 20T and 30T cylinders are available on request;
  • Over-pressurisation is prevented due to built in safety valves
  • The stop-ring avoids cylinder piston rod over-reaching, accommodating maximum cylinder extension;
  • Cylinder piston rod wiper reduces contamination, extending cylinder life;
  • Removable hardened saddles protect cylinder piston rod during lifting and pressing.
Part No.Cap.
(ton)
Stroke
B (mm)
Cylinder Max.
Capacity
Oil CapacityCollaps.
Height
A (mm)
Outside
Dia. D
(mm)
Saddle Protr.
From Plgr.K
(mm)
Weight
(kg)
Push (kn)PullPush (cm3)Pull
RAR-5025050496187354134201145311.1
RAR-50450100496187709267251145312.7
RAR-506501504961871063401301145314.3
RAR-100410010010025571431795301185319.3
RAR-1006100150100255721471193351185324.2
RAR-1008100200100255728631590401185325.1
RAR-1506150150158992434051979348230333.2

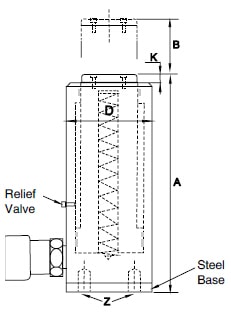

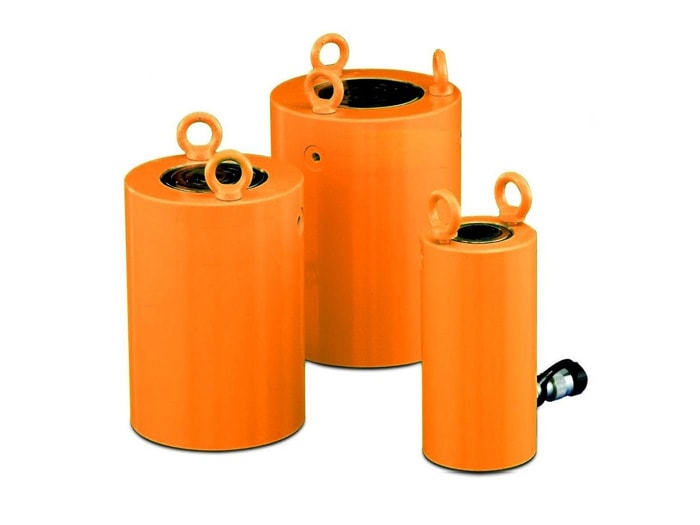

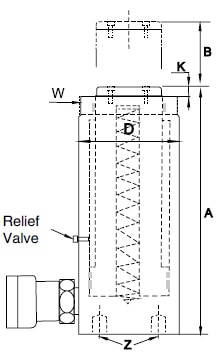

Single-Acting Hydraulic Cylinder

Range of Jacking Cylinders
  • Max Working Pressure: 700 Bar;
  • Single acting cylinders with heavy duty return springs and are designed to be used in all orientations;
  • Base mounting holes along with ram and collar threads enable various installation options;
  • Durability is enhanced by using high strength alloy steel;
  • Corrosive resistant baked enamel can be upgraded to nickel plating on most models;
  • The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension.
Part No.Capacity
(ton)
(kN)
Stroke
B (mm)
Oil
Capacity
(cm³)
Collaps.
Height
A (mm)
Outside
Dia. D
(mm)
Bolt
Circle Z
(mm)
Saddle
Height
K (mm)
Collar
Thread
W
Weight
(kg)
RC-505 (45)1610415828--1.0
RC-515 (45)2516110382561 1/2"-161.0
RC-535 (45)7650165382561 1/2"-161.5
RC-555 (45)12783215382561 1/2"-161.9
RC-575 (45)177115273382561 1/2"-162.4
RC-595 (45)232151323382561 1/2"-162.8
RC-10110 (101)2638895739-1.8
RC-10210 (101)5478121573962 1/4" - 142.3
RC-10410 (101)105152171573962 1/4" - 143.3
RC-10610 (101)156226247573962 1/4" - 144.4
RC-10810 (101)203294298573962 1/4" - 145.4
RC-101010 (101)257373349573962 1/4" - 146.4
RC-101210 (101)304441400573962 1/4" - 146.8
RC-101410 (101)356516450573962 1/4" - 148.2
RC-15115 (142)2551124573992 3/4" - 163.3
RC-15215 (142)51104149694792 3/4" - 164.1
RC-15415 (142)101205200694792 3/4" - 165.0
RC-15615 (142)152308271694792 3/4" - 166.8
RC-15815 (142)203411322694792 3/4" - 168.2
RC-151015 (142)254516373694792 3/4" - 169.5
RC-151215 (142)305619423694792 3/4" - 1610.9
RC-151415 (142)356723474694792 3/4" - 1611.8
RC-25125 (232)26861398558103 5/6" - 125.9
RC-25225 (232)501661658558103 5/6" - 126.4
RC-25425 (232)1023392158558103 5/6" - 128.2
RC-25625 (232)1585252738558103 5/6" - 1210.0
RC-25825 (232)2106973238558103 5/6" - 1212.2
RC-251025 (232)2618673748558103 5/6" - 1214.1
RC-251225 (232)31110334258558103 5/6" - 1216.3
RC-251425 (232)36212024768558103 5/6" - 1217.7
RC-30830 (295)209880387101-103 5/6" - 1218.1
RC-50250 (498)513621761279525" - 12"15.0
RC-50450 (498)1017192271279525" - 12"19.1
RC-50650 (498)15911312821279525" - 12"23.1
RC-501350 (498)33723994601279525" - 12"37.6
RC-75675 (718)1561601285146-55 3/4" - 1229.5
RC-751375 (718)3333417492146-55 3/4" - 1259.0
RC-100695 (933)168223935717713926 7/8" - 1259.0
RC-1001095 (933)260346644917713926 7/8" - 1272.6

Double-Acting Hydraulic Cylinder

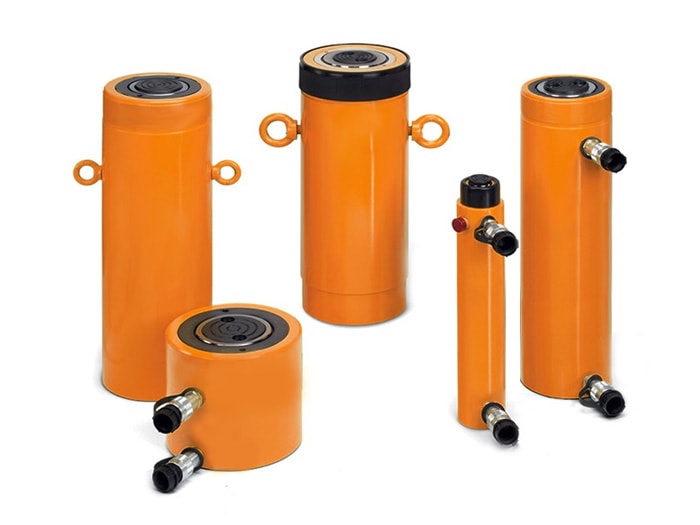

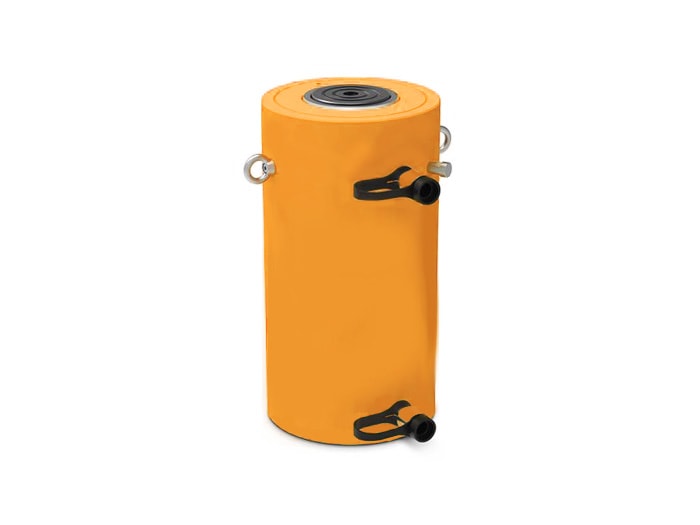

Double Acting Hydraulic Cylinders
  • Max Working Pressure: 700 Bar;
  • These double acting cylinders enable quick retraction and are designed to be used in all orientations;
  • Base mounting holes along with ram and collar threads enable various installation options;
  • Unique loading design enables it to bear unbalanced loads up to 3% capacity with no damage to the cylinder;
  • The cylinder piston rod is protected from damage by the interchangeable hardened saddles;
  • Cylinder piston rod wiper reduces contamination, extending cylinder life;
  • Over-pressurisation is prevented due to built in safety valves;
  • Coated with corrosive resistant baked enamel.
Part No.Capacity
(ton)
(kN)
Stroke
B
(mm)
Max. Cylinder

Capacity (Kn)
Oil Capacity
(cm³)
Bolt
Circle
Z (mm)
Collaps.
Height
A (mm)
PushPullPushPull-
RR-101010(101)25410133368122-409
RR-101210(101)30510133442147-457
RR-30830(295)20929553879400-395
RR-301430(295)368295531549703-579
RR-50650(498)1564981031111335-331
RR-501350(498)334498103237871876509
RR-502050(498)51149810336381099-733
RR-75675(718)1567181561601490-347
RR-751375(718)33371815634171046139525
RR-100695(933)16893343522381045139357
RR-1001395(933)33393343544392071139524
RR-1001895(933)46093343561322861-687
RR-1502140(1386)5713866681129544158196
RR-1506140(1386)156138666830901488158385
RR-15013140(1386)333138666865973711-582
RR-15032140(1386)81513866681614577751271116
RR-2006200(1995)15219951017433222009127430
RR-20013200(1995)3301995101794054795127608
RR-20018200(1995)45719951017130256640127165
RR-20024200(1995)61019951017173858863127917
RR-20036200(1995)9141995101726049132801271222
RR-20048200(1995)12191995101734741177121581527
RR-3006325(3201)1533201170369973721127485
RR-30012325(3201)30532011703139477418127638
RR-30018325(3201)457320117032088911114127790
RR-30024325(3201)609320117032785014811127943
RR-30036325(3201)9153201170341843222531271247
RR-30048325(3201)12193201170355745296462031552
RR-4006440(4292)1524292229793194987203538
RR-40012440(4292)305429222971870010007203690
RR-40018440(4292)457429222972801814995203843
RR-40024440(4292)610429222973740020014203995
RR-40036440(4292)9144292229756037299882031300
RR-40048440(4292)12194292229774737399962031605
RR-5006520(5108)15351082838111646203203577
RR-50012520(5108)305510828382225612365203730
RR-50018520(5108)457510828383334718526203882
RR-50024520(5108)6095108283844440246892031035
RR-50036520(5108)9155108283866768369732031339
RR-50048520(5108)12195108283888951494182031644

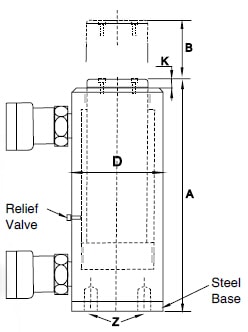

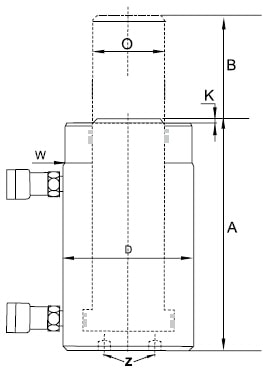

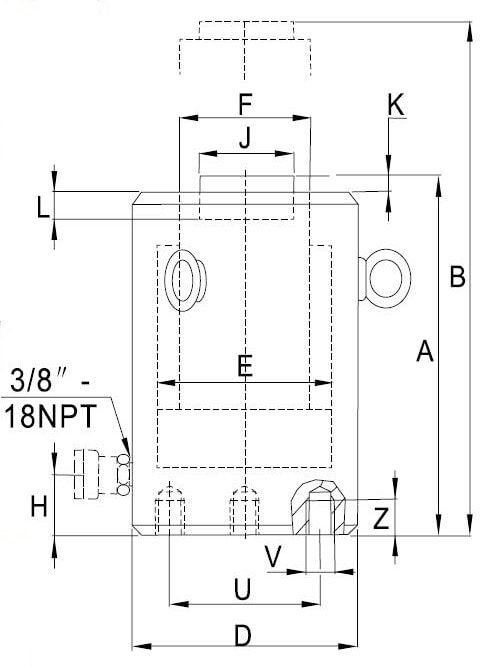

Double Acting Hydraulic Cylinder Diagram

Low Height Cylinder

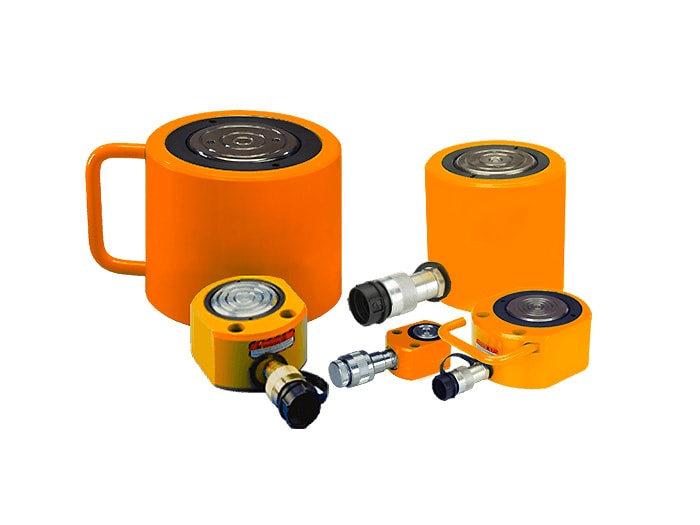

RSM/RSC Series Hydraulic Cylinders

RSM-Series

  • Max Working Pressure: 700 Bar;
  • Single acting cylinders with heavy duty return springs and are designed to be used in all orientations;
  • These flat cylinders will fit where other cylinders collapsed height will not enable placement;
  • Coated with corrosive resistant baked enamel;
  • Steel cylinder piston rods are hard chrome plated;
  • Saddles are not required due to grooved cylinder piston rod ends;
  • The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension;

RCS-Series

  • Single acting cylinders with heavy duty return springs and are designed to be used in all orientations;
  • Light weight, low profile design for use in confined spaces;
  • Coated with corrosive resistant baked enamel;
  • Steel cylinder piston rods are hard chrome plated with bronze plating available on request;
  • Saddles are not required due to grooved cylinder piston rod ends;
  • The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension.
Part No.Capacity
(ton)
(kN)
Stroke
B (mm)
Oil
Cap.
(cm³)
Collapsed
Height
A(mm)
Outside
Dia.
(mm)
Plunger
Dia.
F (mm)
Saddle Protr.
From Plgr.
K (mm)
Bolt
Circle
Z (mm)
Weight
(kg)
RSM-505(45)643258 X 4125.41-1.0
RSM-10010(10)12184282 X 5538.11-1.4
RSM-20020(201)113251101 X 7650.81-3.1
RSM-30030(295)135558117 X 9563.42-4.5
RSM-50045(435)169966140 X 11469.82-6.8
RSM-75075(718)1616479165 X 13982.62-11.3
RSM-100090(887)1620385178 X 15392.22-14.5
RSM-1500150(1386)16317100215 X 190114.32-26.3
RCS-10110(101)38558869-5264.1
RCS-20120(201)451299892-3405.0
RCS-30230(295)62261117101-3406.8
RCS-50245(435)60373122124-34010.9
RCS-100290(887)57722141165-15522.7

Pancake Lock Nut Cylinder

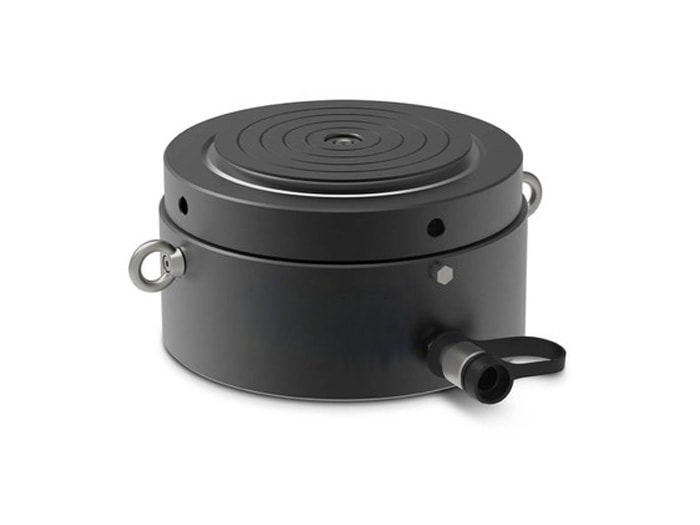

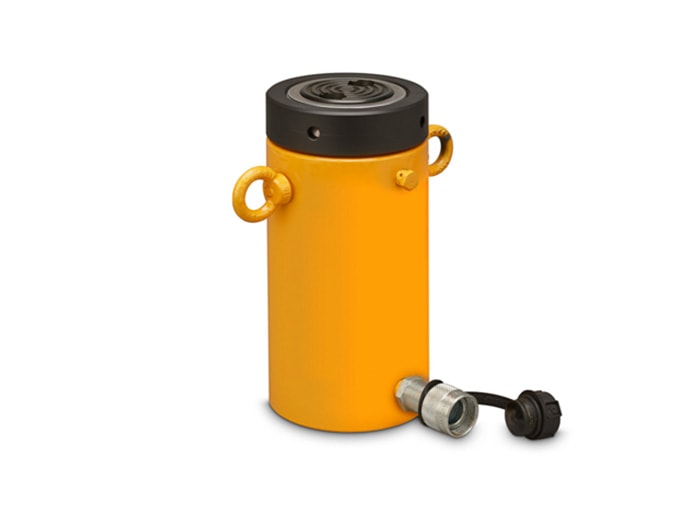

Pancake lock nut cylinder
  • Max Working Pressure: 700 Bar;
  • Single acting, load return;
  • Extremely low profile design for use in confined spaces ;
  • Supports loads mechanically for extended periods enabling hydraulic pressure release;
  • Overflow port prevents the piston rod from over extending;
  • Optional synthetic coating for improved corrosion resistance and lower friction for smoother operation to withstand side load forces up to 3% of rated cylinder capacity without scoring is available.
Part No.Capacity
(ton)
(kN)
Stroke
B
(mm)
Oil
Capacity
(cm³)
Collaps.
Height
A(mm)
Outside Dia.
D
(mm)
Cylinder
EffectiveArea
(cm³)
Saddle Protr.
From Plgr.
K (mm)
Weight
(kg)
CLP-60260 (606)5043212514086.6615
CLP-1002100 (1027)50734137175146.8826
CLP-1602160 (1619)451040148220231.3944
CLP-2002200 (1999)451285155245285.61057
CLP-2502260 (2567)451650159275366.81174
CLP-4002400 (3916)452517178350559.511134
CLP-5002520 (5114)453287192400730.610189

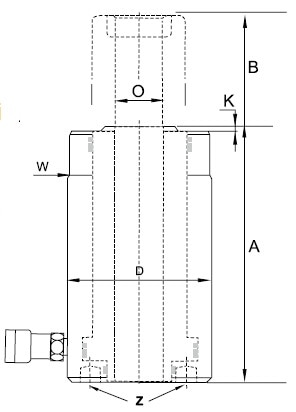

Single-Acting Hollow Plunger Cylinder

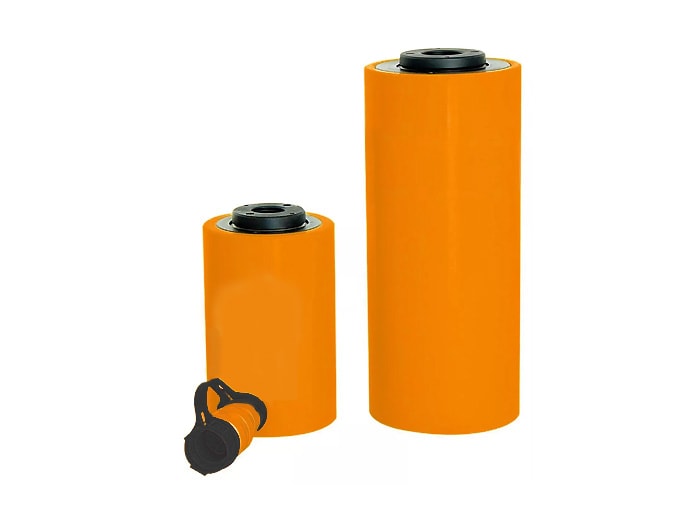

Single Acting Hollow Plunger Cylinder
  • Max Working Pressure: 700bar;
  • Single acting cylinders with heavy duty return springs and are designed to be used in all orientations;
  • Hollow rod design enables pulling and tensioning;
  • Threaded collars enable convenient placement;
  • All cylinders above 20 ton have a nickel-plated floating centre tube to increase their working life;
  • Coated with corrosive resistant baked enamel.
Part No.Capacity
(ton)
(kN)
Stroke
B
(mm)
Oil
Capacity
(cm³)
Collaps.
Height
A (mm)
Outside
Dia.
D (mm)
Cylinder
Effective
Area
(cm²)
Saddle
Protr.
From Plgr.
K (mm)
Centre
Hole Dia.
O
(mm)
Bolt
Circle
Z (mm)
Weight
(kg)
RCH-12013 (125)814556917.9-19.650.81.5
RCH-12113 (125)42751206917.9-19.6-2.8
RCH-121113 (125)42751206917.9-19.6-2.8
RCH-12313 (125)761361846917.9-19.650.84.4
RCH-20220 (215)491501629830.79.726.982.67.7
RCH-20620 (215)1554763069830.79.726.982.614.1
RCH-30230 (326)6429817811446.69.033.392.210.9
RCH-30630 (326)15572233011446.69.033.392.221.8
RCH-60360 (576)7662624715982.312.053.8130.328.1
RCH-60660 (576)153125932315982.312.053.8130.335.4
RCH-100395 (931)761011254212133.012.079.0177.863.0

Double-Acting Hollow Plunger Cylinder

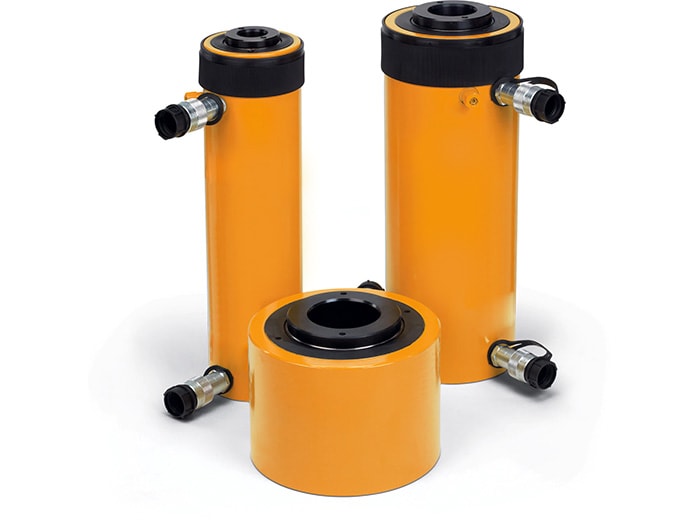

Double Acting Hollow Plunger
  • These double acting cylinders enable fast and controlled retraction;
  • The hollow rod design enables pulling and tensioning;
  • Threaded collars enable convenient placement ;
  • Coated with corrosive resistant baked enamel;
  • All cylinders have a nickel-plated floating centre tube to increase their working life;
  • Cylinder piston rod wiper reduces contamination, extending cylinder life;
  • Over-pressurisation is prevented due to built in safety valves.
Part No.Capacity
(ton)
(kN)
Stroke
B
(mm)
Max Capacity (kN)Oil Capacity
(cm³)
Collaps.
Height
A (mm)
PushPullPushPull
RRH-30730178326213829541330
RRH-3010302583262131202784431
RRH-6036089576380733482247
RRH-606601665763801366900323
RRH-60106025757638021151393438
RRH-10019538931612505333165
RRH-100395769316121011666254
RRH-10069515393161220351337342
RRH-100109525793161234202246460
RRH-1508145203142971841442083349

Single-Acting High Tonnage Cylinder

Single Acting High Tonnage Cylinders
  • Max Working Pressure: 700 Bar;
  • Single acting, load return;
  • Base mounting holes are standard on all models;
  • Unique loading design enables it to bear unbalanced loads up to 3% capacity with no damage to the cylinder;
  • The cylinder piston rod is protected from damage by the interchangeable hardened saddles;
  • The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension;
  • The dust ring prevents contamination and enhances longer cylinder life.
Part No.Capacity
(ton
(kN)
Stroke
B
(mm)
Oil
Capacity
(cm³)
Collaps.
Height
A (mm)
Outside Dia.
D
(mm)
Saddle Protr.
From Plgr.
K
(mm)
Weight
(kg)
Optional Tilt
Saddle Model
CLSG-50250(539)50385162130117GATG-50
CLSG-50450(539)100770212130120GATG-50
CLSG-50650(539)1501155262130123GATG-50
CLSG-50850(539)2001540312130117GATG-50
CLSG-501050(539)2501924362130131GATG-50
CLSG-501250(539)3002309412130134GATG-50
CLSG-1002100(929)50664182165119GATG-100
CLSG-1004100(929)1001327232165129GATG-100
CLSG-1006100(929)1501991282165140GATG-100
CLSG-1008100(929)2002655332165150GATG-100
CLSG-10010100(929)2503318382165161GATG-100
CLSG-10012100(929)3003982432165171GATG-100
CLSG-1502150(1390)50993196205139GATG-150
CLSG-1504150(1390)1001986246205152GATG-150
CLSG-1506150(1390)1502978296205165GATG-150
CLSG-1508150(1390)2003971346205178GATG-150
CLSG-15010150(1390)2504964396205192GATG-150
CLSG-15012150(1390)30059574462051105GATG-150
CLSG-2002200(1861)501330216235155GATG-200
CLSG-2006200(1861)1003989316235191GATG-200
CLSG-20012200(1861)30079774662351146GATG-200
CLSG-2502250(2565)501832235275189GATG-250
CLSG-2506250(2565)10054973352751136GATG-250
CLSG-25012250(2565)300109934852751207GATG-250
CLSG-3002300(3193)5022813123101184GATG-300
CLSG-3006300(3193)15068434123101232GATG-300
CLSG-30012300(3193)300136855623101303GATG-300
CLSG-4002400(3919)5028003753503270GATG-400
CLSG-4006400(3919)15083994753503330GATG-400
CLSG-40012400(3919)300167976253503421GATG-400
CLSG-5002500(5114)5036534194003401GATG-500
CLSG-5006500(5114)150109595194003480GATG-500
CLSG-50012500(5114)300219186694003599GATG-500
CLSG-6002600(5987)5042764294303474GATG-600
CLSG-6006600(5987)150128295294303565GATG-600
CLSG-60012600(5987)300256596794303701GATG-600
CLSG-8002800(8234)5058814745053741GATG-800
CLSG-8006800(8234)150176445745053868GATG-800
CLSG-80012800(8234)3003528872450531058GATG-800
CLSG-100021000(10260)50732956456031062GATG-1000
CLSG-100061000(10260)1502198666456031213GATG-1000
CLSG-1000121000(10260)3004397281456031439GATG-1000

Double-Acting High Tonnage Cylinder

Double Acting High Tonnage Cylinder
  • Max Working Pressure: 700 Bar;
  • These double acting cylinders enable quick retraction and are designed to be used in all orientations ;
  • Base mounting holes are standard on all models;
  • Unique loading design enables it to bear unbalanced loads up to 3% capacity with no damage to the cylinder;
  • The cylinder piston rod is protected from damage by the interchangeable hardened saddles;
  • Tilt saddles are optional;
  • Over-pressurisation is prevented due to built in safety valves;
  • The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension;
  • The dust ring prevents contamination and enhances longer cylinder life.
Part No.Capacity
(ton)
(kN)
Stroke
(mm)
Oil Capacity
(cm³)
Collaps.
Height
A (mm)
Outside
Dia.
D (mm)
PlungerF (mm)Ext.
Height
B (mm)
Cyl. Top to
Return
Port L(mm)
Saddle Dia.
J
(mm)
Saddle Protr.
Fr.Plgr.
K (mm)
Weight
(kg)
PushPull
CLRG-50250(539)50385192162130702123350117
CLRG-50450(539)100770385212130703123350120
CLRG-50650(539)1501155577262130704123350123
CLRG-50850(539)2001540770312130705123350127
CLRG-501050(539)2501924962362130706123350131
CLRG-501250(539)30023091155412130707123350134
CLRG-1002100(929)50664309179165952294875119
CLRG-1004100(929)1001327619229165953294875129
CLRG-1006100(929)1501991928279165954294875140
CLRG-1008100(929)20026551237329165955294875150
CLRG-10010100(929)25033181546379165956294875161
CLRG-10012100(929)30039821856429165957294875171
CLRG-1502150(1390)509934821962051142465694139
CLRG-1504150(1390)10019869652462051143465694152
CLRG-1506150(1390)150297814472962051144465694165
CLRG-1508150(1390)200397119303462051145465694178
CLRG-15010150(1390)250496424123962051146465694192
CLRG-15012150(1390)3005957289544620511474656941105
CLRG-2002200(1861)50133063521623513326266113155
CLRG-2006200(1861)1003989190531623513346266113191
CLRG-20012200(1861)30079773809466235133762661131146
CLRG-2502250(2565)50183276323527516528578145189
CLRG-2506250(2565)10054972289335275165485781451136
CLRG-25012250(2565)300109934578485275165785781451207
CLRG-3002300(3193)502281757312310197372751771184
CLRG-3006300(3193)15068432270412310197572751771232
CLRG-30012300(3193)300136854541562310197872751771303
CLRG-4002400(3919)5028009673753502164241051963270
CLRG-4006400(3919)150839929024753502166241051963330
CLRG-40012400(3919)3001679758046253502169241051963421
CLRG-5002500(5114)50365312384194002484691352283401
CLRG-5006500(5114)1501095937135194002486691352283480
CLRG-50012500(5114)3002191874276694002489691352283599
CLRG-6002600(5987)50427614774294302674791352473474
CLRG-6006600(5987)1501282944315294302676791352473565
CLRG-60012600(5987)3002565988626794302679791352473701
CLRG-8002800(8234)50588119354745053175341352973741
CLRG-8006800(8234)1501764458065745053177341352973868
CLRG-80012800(8234)3003528811611724505317103413529731058
CLRG-100021000(10260)507329270956456034361417032331062
CLRG-100061000(10260)15021986812666456034381417032331213
CLRG-1000121000(10260)3004397216252814560343111417032331439

Lock Nut Cylinder

Lock Nut Cylinder
  • Max Working Pressure: 700 Bar;
  • Single acting, load return;
  • Supports loads mechanically for extended periods enabling hydraulic pressure release;
  • Base mounting holes are standard on all models;
  • Unique loading design enables it to bear unbalanced loads up to 3% capacity with no damage to the cylinder;
  • Over-pressurisation is prevented due to built in safety valves;
  • The cylinder piston rod is protected from damage by the interchangeable hardened saddles;
  • The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension;
  • The dust ring prevents contamination and enhances longer cylinder life ;
  • Coated with corrosive resistant baked enamel.
Part No.Capacity
(ton)
(kN)
Stroke
B
(mm)
Oil
Capacity
(cm³)
Collaps.
Height
A (mm)
Outside Dia.
D (mm)
Plunger
Dia.
O (mm)
Saddle Protr.
From Plgr.
K (mm)
Weight
(kg)
Option Tilt
Saddle Model
CLL-50250(496)50355164125TR 95X4215CAT-100
CLL-50450(496)100709214125TR 95X4220CAT-100
CLL-50650(496)1501064264125TR 95X4225CAT-100
CLL-50850(496)2001418314125TR 95X4230CAT-100
CLL-501050(496)2501773364125TR 95X4235CAT-100
CLL-501250(496)3002127414125TR 95X4240CAT-100
CLL-1002100(929)50664187165TR 130X6230CAT-100
CLL-1004100(929)1001327237165TR 130X6239CAT-100
CLL-1006100(929)1501991287165TR 130X6248CAT-100
CLL-1008100(929)2002654337165TR 130X6256CAT-100
CLL-10010100(929)2503318387165TR 130X6264CAT-100
CLL-10012100(929)3003981437165TR 130X6273CAT-100
CLL-1502150(1390)50993209205TR 159X6253CAT-200
CLL-1504150(1390)1001986259205TR 159X6266CAT-200
CLL-1506150(1390)1502979309205TR 159X6278CAT-200
CLL-1508150(1390)2003972359205TR 159X6292CAT-200
CLL-15010150(1390)2504965409205TR 159X62104CAT-200
CLL-15012150(1390)3005958459205TR 159X62117CAT-200
CLL-2002200(1859)501330243235TR 184X6283CAT-200
CLL-2006200(1859)1003989343235TR 184X62117CAT-200
CLL-20012200(1859)3007995493235TR 184X62170CAT-200
CLL-2502250(2562)501832249275TR 216X62116CAT-250
CLL-2506250(2562)1005496349275TR 216X62162CAT-250
CLL-25012250(2562)30010995499275TR 216X62234CAT-250
CLL-3002300(3193)502281295310TR 241X65173CAT-300
CLL-3006300(3193)1506843395310TR 241X65233CAT-300
CLL-30012300(3193)30013740545310TR 241X65323CAT-300
CLL-4002400(3919)502800335350TR 266X65250CAT-400
CLL-4006400(3919)1508399435350TR 266X65327CAT-400
CLL-40012400(3919)30016800585350TR 266X65441CAT-400
CLL-5002500(5118)503653375400TR 305X65367CAT-500
CLL-5006500(5118)15010959475400TR 305X65466CAT-500
CLL-50012500(5118)30021930625400TR 305X65617CAT-500
CLL-6002600(5983)504277395430TR 330X65446CAT-600
CLL-6006600(5983)15012830495430TR 330X65562CAT-600
CLL-60012600(5983)30025650645430TR 330X65737CAT-600
CLL-8002800(8238)505882455505TR 387X65709CAT-800
CLL-8006800(8238)15017645555505TR 387X65870CAT-800
CLL-80012800(8238)30035370705505TR 387X651110CAT-800
CLL-100021000(10260)507329495560TR 432X63949CAT-1000
CLL-100061000(10260)15021986595560TR 432X631141CAT-1000
CLL-1000121000(10260)30043980745560TR 432X631430CAT-1000

Telescopic Low Height Hydraulic Cylinder

Low Height Telescopic Hydraulic Cylinder
  • Multi-section compact design, easy to use, single-acting, load return;
  • Surface painted enhance corrosion resistance, and it has a anti-dust ring to reduce pollution and extend life span;
  • The purpose of two hoses on the top of cylinder is to fix jack;
  • It matches to both hand pump and electric pump.
Part No.Capacity
(ton)
Stroke
(mm)
Collapsed Height
(mm)
Oil Capacity
(cm³)
Extended Length
(mm)
OD x flat side
(mm)
Weight
(kg)
RSMB-100102542226782x551.5
RSMB-2002026514177101x762.4
RSMB-30030535858111117x954.5
RSMB-500506466113130140x1147.0

Mechanical Jack

Mechanical Jack
  • Very thin, flat design, suitable for restricted places;
  • Light weight, portable design are ideal for operating without restriction;
  • The material used promotes extended life;
  • Lifting height can be adjusted precisely by 0.01mm.
Part No.Capacity
(ton)
Stroke
(mm)
Effective
Area
(mm²)
Outside size (mm)Weight
(kg)
ABCDE
SMC05255258.025277521952781.5
SMC1025102513.855479622373482.2
SMC200520528.273540842182891.9
SMC300530538.493641952363142.3
SMC500550566.4840451202934013.7
